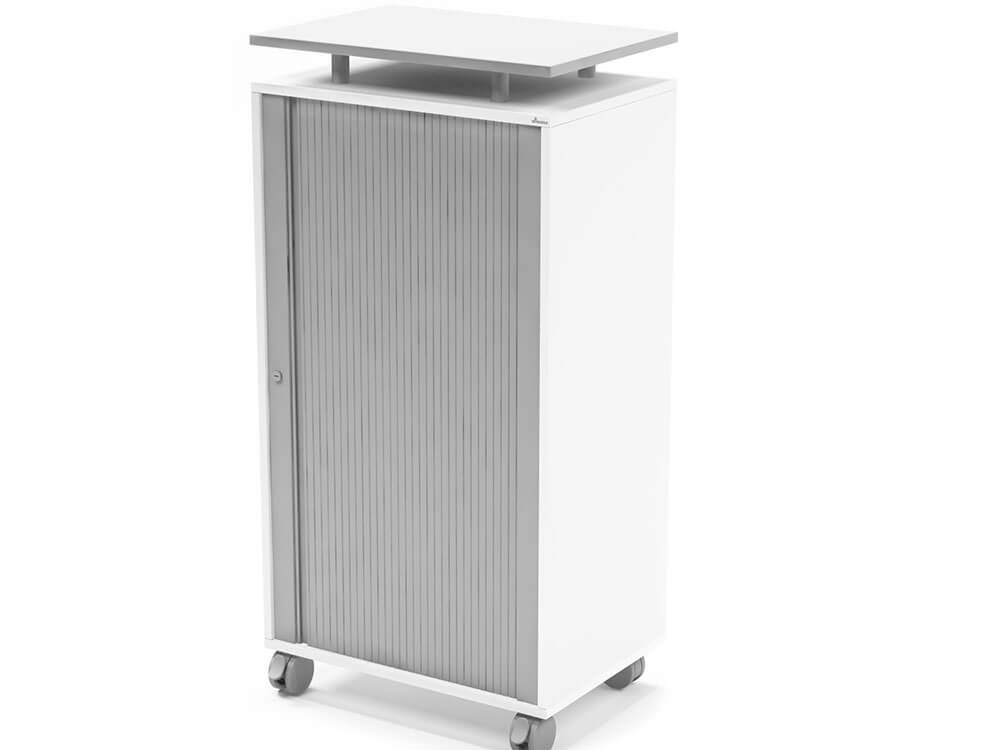

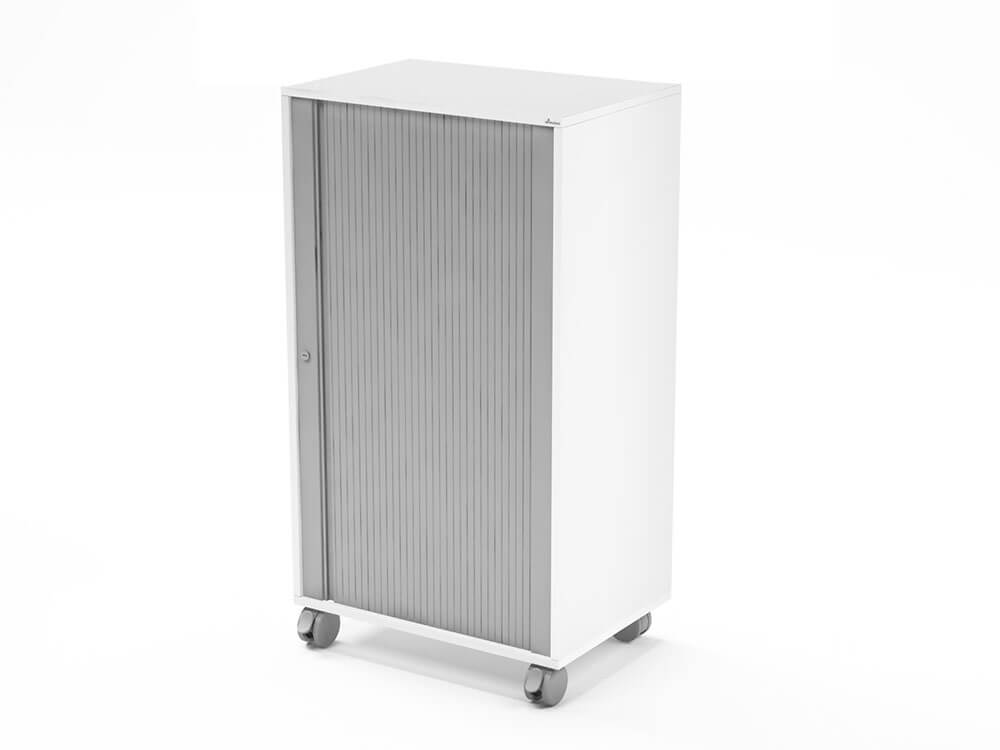

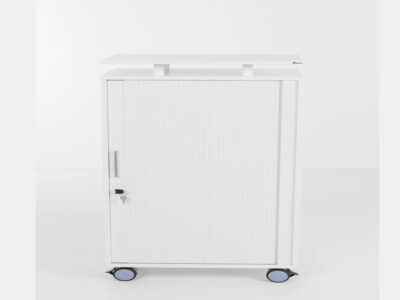

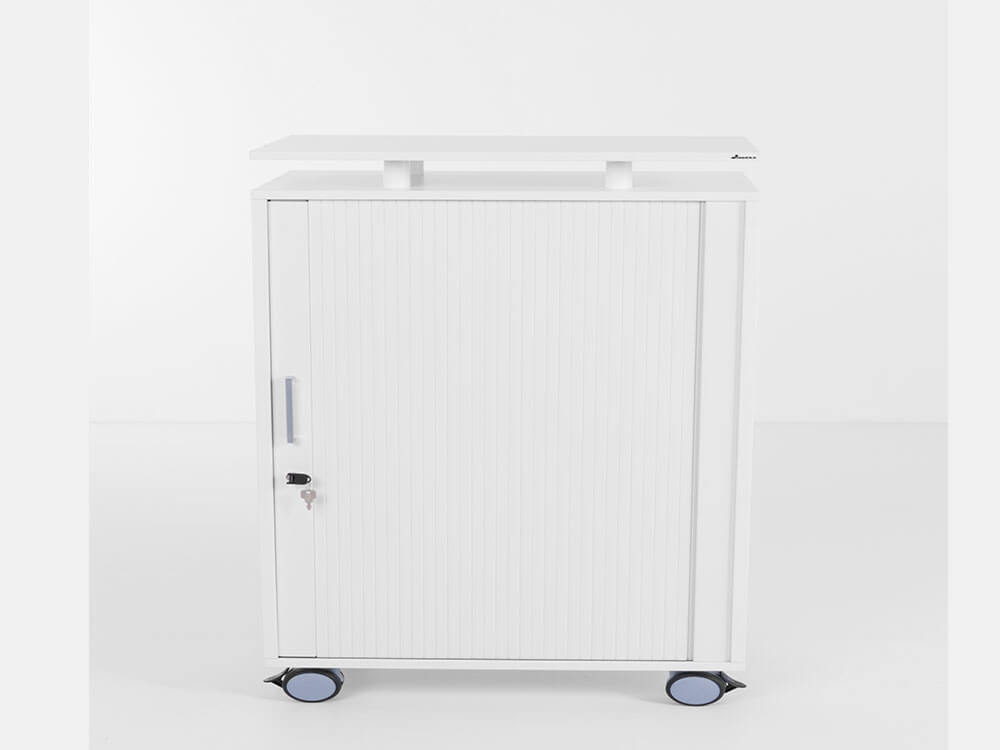

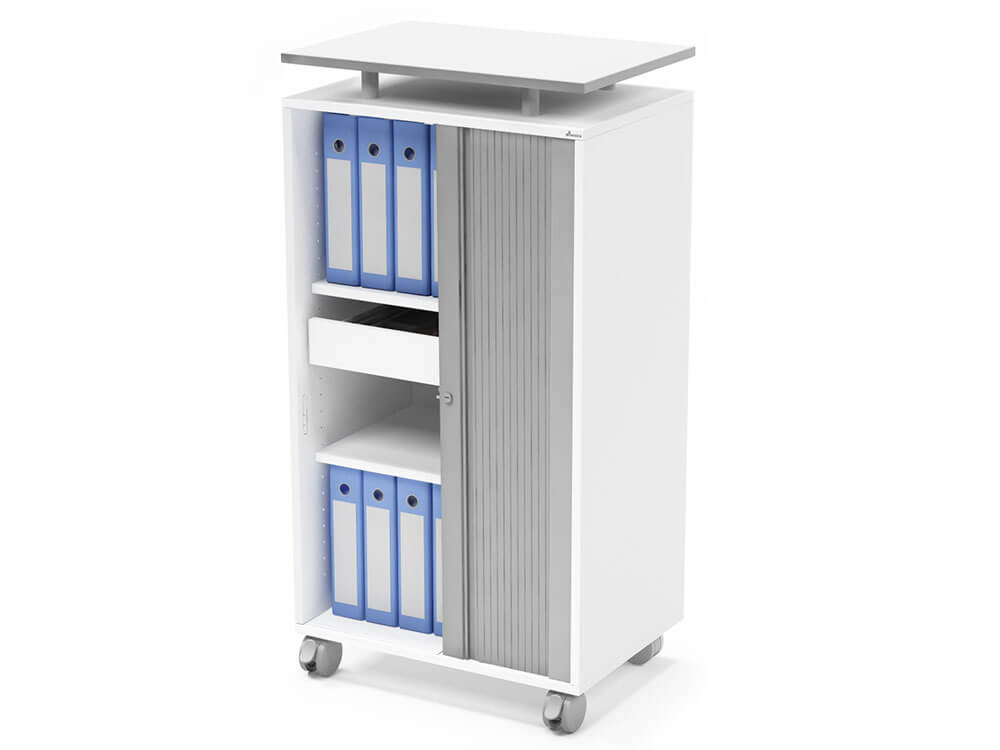

Cardon – Tambour Door Storage Unit
SKU Code: ARMR18N
Download
Brochure
Working on
Project?
Delivery
and
Installation
View in
Showroom
Frequently Asked
Questions
5 year WarrantyMore Information
Details
- Structure: Chipboard coated on both sides with melamine resin with increased durability – 1st class. Chipboard with reduced formaldehyde emission, E1 standard top, floor and fronts are made of 18 mm thick board finished with 2 mm thick ABS plastic edge with 3 mm radius Cabinet carcasses are factory-glued, assembled and delivered as a whole.
- 25 mm top as an option with a surcharge – cabinet 7 mm higher.
- Shelves: Shelves are made of 25 mm thick board finished with 2 mm thick ABS plastic edge with 3 mm radius. Shelves 18 mm thick are an option (unavailable for 1000 mm wide cabinets with no vertical partition).
- It is possible to mount 25 mm thick, metal, powder-coated, black shelves with holes for partition support.
- Flexible space arrangement in the cabinet, thanks to drilling span (every 32 mm) over the whole side height. All shelves are secured in place – no possibility to accidentally pull a shelf out of place.
- Base: Feet H:30 mm with leveling option as standard and Metal base H:30 mm or H:70 mm as an option with a surcharge.
- Frame H:150 mm on legs with a round cross section ร 30 mm or square cross section 30×30 mm with a leveling option (as an option with a surcharge). H:100 mm board base is an option with a surcharge.
- Equipment: Right-sided tambour door in white or aluminum color and 1200 mm wide add-on cabinets with tambour doors are equipped with a vertical partition.
- Drawer: Metal drawers on slides with soft close automatic mechanism. Drawer on extra castor Metal sheet mounted on the right, possibility to mount it on the left.
- The standard drawer extension is 80%, while a 100% extension slide is available as an option.
- Lock: Central lock with removable cylinder and two numbered keys (one foldable key).
- Possibility to choose identical lock as in the cabinets of your choice; see technical description of cabinets.
- Material: Melamine.
- Frame Finish: White, Gloss White, Gray, Beige, Norwegian Green, Navy Blue, Graphite, Black, Acacia, Maple, Oak, Beech.
-
Dimensions
Available In:
Length: 800 mmย ย ย ย ย Depth: 420 mm ย ย ย ย Height: 740 mm
