Capo – One and Four Persons Acoustic Phone Booth with Ventilation
SKU Code: CDMD01N

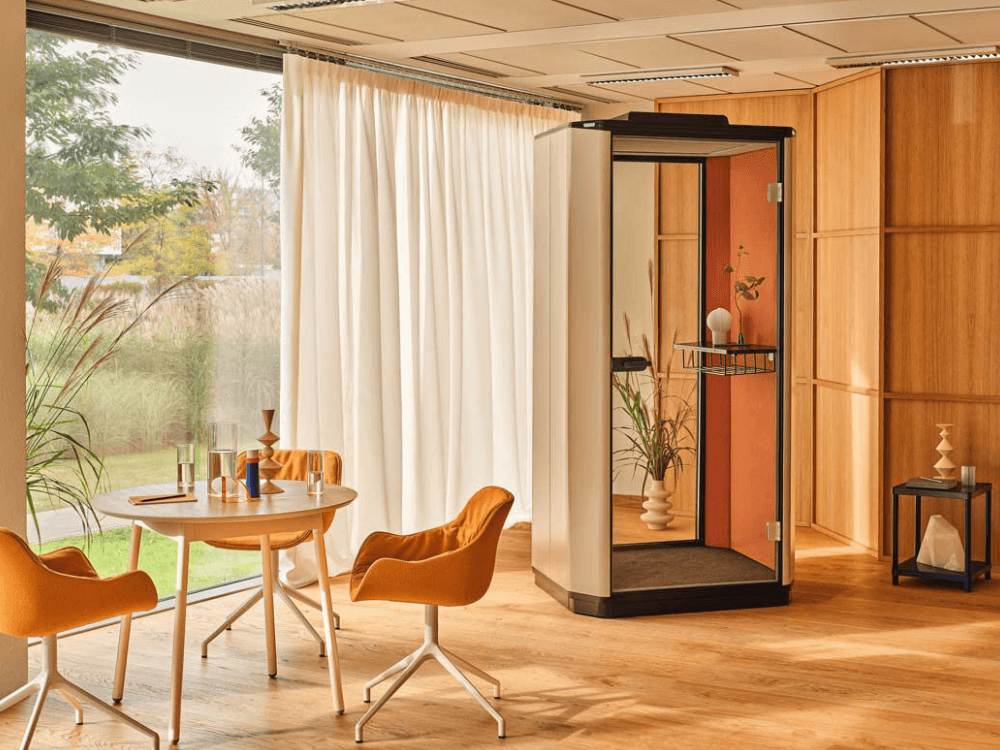

Capo booth is a functional solution for modern offices and public spaces. Designed for groups of four, it provides a comfortable, quiet and private meeting and working zone, even in noisy open-space areas. It has all the benefits of its smaller counterpart and even more! Adjustable lighting and ventilation, quiet fans, occupancy indicator lights, acoustic glass windows and sound-absorbing fabrics are complemented by built-in seating and tables, providing a comfortable place to talk and work.
Working on
Project?
Delivery
and
Installation
View in
Showroom
Frequently Asked
Questions
5 year WarrantyMore Information
Details
- Ceiling: Varnished MDF Board, Upholstered, Colour Dark Graphite; Fitted with Lighting and Fan
- Upholstered Wall: Sheet Metal, 1 mm Thickย Filled with Acoustic Foam, Upholstered On The Inside.
- Internal Wall: Filled with Acoustic Foam, Upholstered.
- External Wall: Powder Coated Steel 1 mm Thick.
- Glass Wall (Option with Extra Charge): Acoustic Safety Glass, Thickness 1 0mm, Aluminum Profile 52×45 mm.
- Glass Door:ย Acoustic Safe Glass, Thickness 10 mm Equipment Hinges, Handle and Seal System.
- Shelf: MDF 19 mm, Frame – Steel Rod ร6 mm Colour Black Shelf at The Height of 1080 mm.
- Ventilator: Ceiling-mounted fan with Airflow Adjustment.
- Control Panel:ย Regulation of Lighting Intensity and Air Flow.
- Seat, Backrest: Cut Foam with a Density of 25 kg/mยณ, Upholstered.
- Floor: MDF 31 mm + acoustic fitted carpet;
- Table: MFC 28 mm, ABS Edge 2 mm Column, Disc Powder-Coated Steel.
- Wheels: Covered with a Plinth, Allow the Booth to Be Easily Moved Before the Final Assembly.

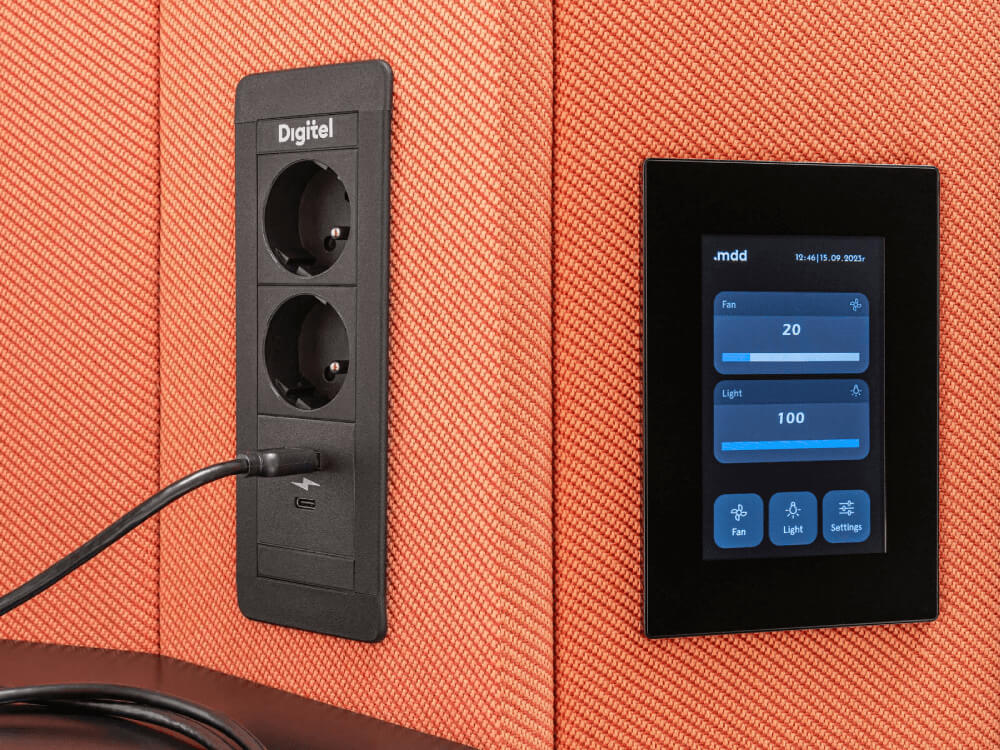

- Mediabox: Two 230V, One USB, and One USB type C Socket.
- Motion Sensor: Activation of Lighting, Fans, Touch Panel, and Signal Lamps.
- Electrical connection: Cable Outlet in The Roof or Plinth.
- Internal Wall and Seat Upholstered Finish:ย Fabric Synergy, Fabric Atlas, Fabric Field 2, Fabric Medley.
- External Wall Finish: Beige Semi Matt, Brick Red Semi Matt, Dark Green Semi Matt, Dark Grey Semi Matt, White Semi Matt.
- Frame Finish: Aluminum Semi-Matt,ย Anthracite Semi-Matt, Black Semi-Matt, White Semi-Matt.
Dimensions
Available In:
Length: 2150 mmย ย ย ย Depth: 1400 mmย ย ย ย Height: 2270 mm
